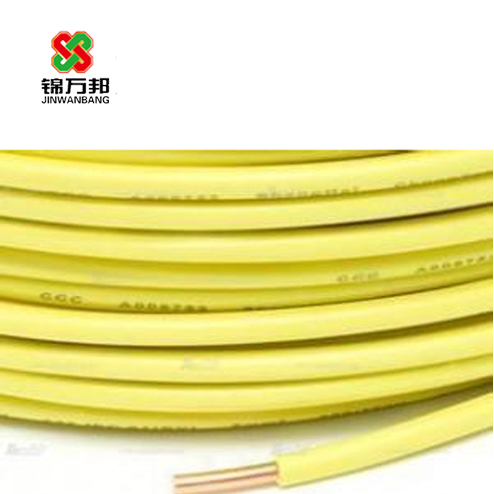

227 IEC01(BV),BLV 450/750VJ緣電纜

227 IEC01(BV),BLV 450/750VJ緣電纜適用于交流額定電壓U/U450/750V及以下的動力、照明、日用電器、儀器儀表及電信設備用銅芯或鋁芯聚氯乙烯J緣電纜（電線）

電話：15956084188
傳真：
郵箱：229877070@qq.com

Description

產品詳細介紹

標　　準：本產品按標準GB5023-1997，JB8734-1998或2271IEC國際標準制造型　　號：227 IEC 01（BV）-銅芯聚氯乙烯J緣電纜（電線）BLV-鋁芯聚氯乙烯J緣電纜（電線）BVR-銅芯聚氯乙烯J緣電纜（電線）227 IEC10（BVV）-銅芯聚氯乙烯J緣聚氯乙烯護套圓形電纜（電線）BLVV-鋁芯聚氯乙烯J緣聚氯乙烯護套圓形電纜（電線）BVVB-銅芯聚氯乙烯J緣聚氯乙烯護套平形電纜（電線）BLVVB-鋁芯聚氯乙烯J緣聚氯乙烯護套平形電纜（電線）227 IEC 07（BV-90）-銅芯耐熱90℃聚乙烯J緣電線。

用　　途：本產品適用于交流額定電壓U/U450/750V及以下的動力、照明、日用電器、儀器儀表及電信設備用銅芯或鋁芯聚氯乙烯J緣電纜（電線）。

使用特性：

1、U0/U為450/750和300/500

2、電纜（電線）長期允許工作溫度，BV-90型應不超過90℃，其它型號應不超過 70℃。

3、電纜（電線）敷設漫度應不低于0℃.

227 IEC01(BV),BLV 450/750V
導體標 稱截面 mm2	導體線芯根數/單線 直徑 mm	J緣標 稱厚度 mm	計算外徑 mm	20°C時 大電流電阻 Ω/km 銅芯	70°C小 J緣電阻 MΩ.km 銅芯	成品近似重量 kg/km
導體標 稱截面 mm2	導體線芯根數/單線 直徑 mm	J緣標 稱厚度 mm	計算外徑 mm	20°C時 大電流電阻 Ω/km 銅芯	70°C小 J緣電阻 MΩ.km 銅芯	銅芯Cu	鋁芯Al
1.5	1/1.38	0.7	2.78	12.2	0.011	19.5
1.5	7/0.52	0.7	2.96	12.1	0.010	19.5
2.5	1/1.78	0.8	3.38	7.41	0.010	30.8	15.4
2.5	7/0.68	0.8	3.64	7.41	0.009	30.8
4	1/2.25	0.8	3.85	4.61	0.0085	45.6	21.0
4	7/0.85	0.8	4.05	4.61	0.0077	45.6
6	71/2.76	0.8	4.36	3.08	0.0070	65.3	28.2
6	7/1.04	0.8	4.72	3.08	0.0065	65.3
10	7/1.35	1	6.05	1.83	0.0065	111	49.0
16	7/1.70	1	7.1	1.15	0.0050	169	69
25	7/2.14	1.2	8.82	0.727	0.0050	265	108
35	7/2.52	1.2	9.96	0.524	0.0040	359	140
50	19/1.78	1.4	11.7	0.387	0.0045	485	190
70	19/2.14	1.4	13.5	0.268	0.0035	685	258
95	19/2.52	1.6	15.8	0.193	0.0035	946	354
120	37/2.03	1.6	17.4	0.153	0.0032	1181	433
150	37/2.25	1.8	19.4	0.124	0.0032	1453	534
185	37/2.52	2	21.6	0.0991	0.0032	1821	668
240	61/2.25	2.2	24.6	0.0754	0.0032	2383	869
300	61/2.52	2.4	27.5	0.0601	0.003	2983	1082
400	61/2.90	2.6	30.8	0.0470	0.0028	3800	1369

BVR450/750V
標稱 截面 mm2	線芯結構		J緣厚度mm	計算外徑mm	大外徑mm	20°C時大電流電阻 Ω/km 銅芯	70°C小J緣電阻 MΩ.km	環境溫度25°C 允許空氣中敷設截流量 [A]	成品近似重量 kg/km
標稱 截面 mm2	根/直徑 mm	外徑 mm	J緣厚度mm	計算外徑mm	大外徑mm	20°C時大電流電阻 Ω/km 銅芯	70°C小J緣電阻 MΩ.km	環境溫度25°C 允許空氣中敷設截流量 [A]	成品近似重量 kg/km
2.5	19/0.41	2.05	0.8	3.7	4.2	7.41	0.011	34	33.0
4.0	19/0.52	2.60	0.8	4.2	4.8	4.61	0.009	45	49.0
6.0	19/0.64	3.20	0.8	4.8	5.6	3.08	0.0084	58	71.0
10.0	49/0.52	4.68	1.0	6.7	7.6	1.83	0.0072	79	125.5
16	49/0.64	5.76	1.0	7.8	8.8	1.15	0.0062	111	181.0
25	98/0.58	7.68	1.2	10.1	11.1	0.727	0.0058	146	302
35	133/0.58	8.20	1.2	11.1	12.5	0.524	0.0052	180	395
50	133/0.68	10.20	1.4	13.0	14.5	0.387	0.0051	225	544
70	189/0.68	12.55	1.4	15.4	16.5	0.268	0.0045	280	728

227 IEC 10(BVV),300/500
導體芯數 和標稱截面 mm	導體結構 根數/單線 直徑 mm	J緣厚度規定值 mm	內護套厚度近似值 mm	護套厚度規定值 mm	平均外徑		70°C小 J緣電阻 MΩ.km	成品近似重量 kg/km
導體芯數 和標稱截面 mm	導體結構 根數/單線 直徑 mm	J緣厚度規定值 mm	內護套厚度近似值 mm	護套厚度規定值 mm	下限 mm	上限 mm	70°C小 J緣電阻 MΩ.km	成品近似重量 kg/km
2x1.5	1/1.38	0.7	0.4	1.2	7.6	10.0	0.011	105.7
2x1.5	7/0.52	0.7	0.4	1.2	7.8	10.5	0.010	111.3
2x2.5	1/1.78	0.8	0.4	1.2	8.6	11.5	0.010	114.6
2x2.5	7/0.68	0.8	0.4	1.2	9.0	12.0	0.009	167.9
2x4	1/2.25	0.8	0.4	1.2	9.6	12.5	0.0085	190.3
2x4	7/0.85	0.8	0.4	1.2	10.0	13.0	0.0077	214.1
2x6	1/2.76	0.8	0.4	1.2	10.5	13.5	0.0070	245.5
2x6	7/1.04	0.8	0.4	1.2	11.0	14.0	0.0065	282.0
2x10	7/1.35	1.0	0.6	1.4	13.0	16.5	0.0070	446.2
2x16	7/1.70	1.0	0.6	1.4	15.5	20.0	0.0052	617.1
2x25	7/2.14	1.2	0.8	1.4	18.5	24.0	0.0050	914.7
2x35	7/2.52	1.2	1.0	1.6	21.0	27.5	0.0044	1225.0
3x1.5	1/1.38	0.7	0.4	1.2	8.0	10.5	0.011	124.5
3x1.5	7/0.52	0.7	0.4	1.2	8.2	11.0	0.010	143.5
3x2.5	1/1.78	0.8	0.4	1.2	9.2	12.0	0.010	175.0
3x2.5	7/0.68	0.8	0.4	1.2	9.4	12.5	0.009	202.4
3x4	1/2.25	0.8	0.4	1.2	10.0	13.0	0.0085	235.8
3x4	7/0.85	0.8	0.4	1.2	10.5	13c.5	0.0077	261.6
3x6	1/2.76	0.8	0.4	1.4	11.5	14.5	0.0070	320.0
3x6	7/1.04	0.8	0.4	1.4	12.0	15.5	0.0065	362.5
3x10	7/1.35	1.0	0.6	1.4	14.0	17.5	0.0070	557.9
3x16	7/1.7	1.0	0.8	1.4	16.5	21.5	0.0052	799.6
3x25	7/2.14	1.2	0.8	1.6	20.5	26.0	0.0050	1192.4
3x35	7/2.52	1.2	1.0	1.6	22.0	29.0	0.0044	1577.5
4x1.5	1/1.38	0.7	0.4	1.2	8.6	11.5	0.011	152.4
4x1.5	7/0.52	0.7	0.4	1.2	9.0	12.0	0.010	172.6
4x2.5	1/1.78	0.8	0.4	1.2	10.0	13.0	0.010	215.3
4x2.5	7/0.68	0.8	0.4	1.2	10.0	13.5	0.009	246.7
4x4	1/2.25	0.8	0.4	1.4	11.5	14.5	0.0085	302.5
4x4	7/0.85	0.8	0.4	1.4	12.0	15.0	0.0077	335.2
4x6	1/2.76	0.8	0.6	1.4	12.5	16.0	0.00700	398.1
4x6	7/1.04	0.8	0.6	1.4	13.0	17.0	0.0065	464.0
4x10	7/1.35	1.0	0.6	1.4	15.5	19.0	0.0070	695.5
4x16	7/1.70	1.0	0.8	1.4	18.0	23.5	0.0052	1009.2
4x25	7/2.14	1.2	1.0	1.6	22.5	28.5	0.0050	1528.2
4x35	7/2.52	1.2	1.0	1.6	24.5	32.0	0.0044	1997.2
5x1.5	1/1.38	0.7	0.4	1.2	9.4	12.0	0.011	183.2
5x1.5	7/0.52	0.7	0.4	1.2	9.8	12.5	0.010	205.8
5x2.5	1/1.78	0.8	0.4	1.2	11.0	14.0	0.010	259.6
5x2.5	7/0.68	0.8	0.4	1.2	11.0	14.5	0.009	297.2
5x4	1/2.25	0.8	0.6	1.4	12.5	16.0	0.0085	365.1
5x4	7/085	0.8	0.6	1.4	13.0	17.0	0.0077	419.7
5x6	1/2.76	0.8	0.6	1.4	13.5	17.5	0.0070	498.3
5x6	7/1.04	0.8	0.6	1.4	14.5	18.5	0.0065	563.6
5x10	7/1.70	1.0	0.6	1.4	17.0	21.0	0.0070	849.0
5x16	7/2.14	1.2	0.8	1.6	20.5	26.0	0.0052	1254.7
5x25	7/2.14	1.2	1.0	1.6	24.5	31.5	0.0050	1874.1
5x35	7/2.52	1.2	1.2	1.6	27.0	35.0	0.0044	2481.4

BVV BLVV 300/500V JBB8734.2-1998芯數X截面導體結構J緣厚度J緣外徑護套厚度護套外徑材料凈重成品近似重量根/單線直徑直徑銅Cu鋁AlPVCJ緣PVC護套銅Cu鋁Al1x0.751/0.970.970.62.20.83.86.6 4.210.321.1 1x1.01/1.131.130.62.50.84.18.9 5.311.425.6 1x1.51/1.381.380.72.80.84.413.3 6.412.432.1 1x1.57/0.521.560.73.20.84.813.3 8.713.835.8 1x2.51/1.781.780.83.40.85.022.16.79.014.545.630.21x2.57/0.682.040.83.90.85.522.8 12.416.251.4 1x41/2.252.250.83.90.95.735.410.810.918.664.940.31x47/0.852.550.84.40.96.235.6 14.620.570.7 1x61/2.762.760.84.40.96.253.216.212.620.586.349.31x67/1.043.120.85.10.96.953.3 18.723.295.2 1x107/1.354.051.06.30.98.189.827.027.027.9144.781.9

BVVB BLVVB 300/500V JB8734.2-1998芯數X截面導體結構J緣護套厚度mm 材料凈重Kd/km成品近似重量kg/km根/單線直徑直徑mm 厚度mm 直徑mm 銅Cu鋁AlPVCJ緣PVC護套銅Cu鋁Al2x0.751/0.970.970.62.170.913.1 8.117.038.2 2x1.01/1.131.130.62.330.917.8 8.918.044.7 2x1.51/1.381.380.72.780.929.9 12.521.063.4 2x2.51/1.781.780.83.381.044.213.417.828.090.159.22x41/2.252.250.83.851.070.721.521.031.4123.173.92x47/0.852.550.84.201.071.2 23.933.9129.0 2x61/2.762.760.84.361.1106.432.324.539.0169.995.82x67/1.043.120.84.801.1106.5 28.642.4177.5 2x107/1.354.051.06.101.2179.554.044.757.7281.9156.43x0.751/0.970.970.62.170.919.7 12.222.654.5 3x1.01/1.131.130.62.330.926.8 13.424.064.1 3x1.51/1.381.380.72.780.944.8 18.828.091.6 3x2.51/1.781.780.83.381.066.420.126.637.4130.484.13x41/2.252.250.83.851.1106.132.231.546.6184.2110.33x47/0.852.550.84.201.1106.7 35.950.4193.0 3x61/2.762.760.84.361.1159.748.436.752.0248.4137.13x67/1.043.120.84.801.1159.8 42.957.0259.7 3x107/1.354.051.06.101.2269.381.167.177.8414.2226.0
